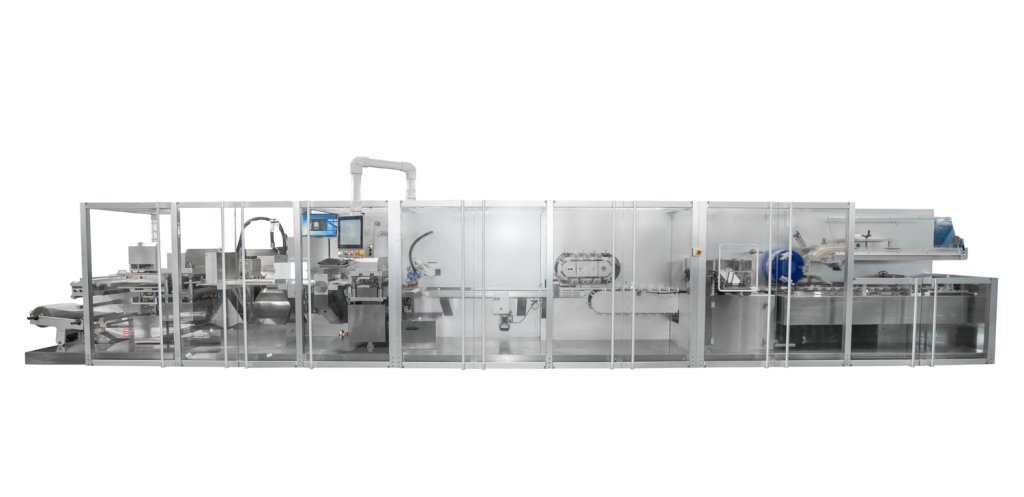

TrayMaking,LoadingandCartoningMachineDPT350L+ZHJ120

Features：

Tray module：

1. Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution.

2. Workstation adjustment by handwheel equipped with digital position display.

3. Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material.

4. Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user’s blister size.

5. Packing material winding through air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials.

6. Feeding by pick-and-place robot arm ensures accurate placement of blisters without damage.

Cartoner module：

7. Intermittent Cartoner ZHJ120 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of blisters, drug bottles, ointments and other similar products.

8. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production.

9. ZHJ120 adopts PLC, photoelectric detection, and HMI.

10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator.

11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

Parameters
