Precision Advanced All-in-One Case Packer KZF-550R3 (loading by Yamaha robot)

All-in-one Case Erector Loader Sealer KZF-550R3 incorporates advanced technologies both home and abroad. Automatic stacking, case erector driven by servo, loader by four-axis Yamaha robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.   The machine stacks and collates the cardboard blanks (KNF) according to the required numbers of products to be packed. The four-axis Yamaha robot arm will pick and place the product into the case after stacking and case will be sealed after loading. The machine can be equipped with conveyor roller as per customer’s requirement to be integrated with labeling machine and strapping machine. KZF-550R3 is widely used in pharmaceutical, food, chemical and other light industries.

Share:

Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration

Product Type

  • Introduction

  • FAQ

  • Video

Features

1. PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing.

2. The stacking system can be adjusted according to the size of the case and stacking pattern.

3.Not less than 10 placements per minute for quick case loading.

4.Case erector driven by servo and case loader by four-axis Yamaha robot ensure stable and reliable process.

5. Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning.

6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Parameters

ModelKZF-550R3
Carton size(300-550)x(200-400)x(200-350)mm
Loading speedRobot arm≥10 placements/min
Power supply220V  50Hz
Power consumption5.5Kw
Compressed air pressure0.6-0.8Mpa
Dimensions(L×W×H)3650x3000x2300mm
Weight1300Kg
Based on standard configurations while machine can be customized.

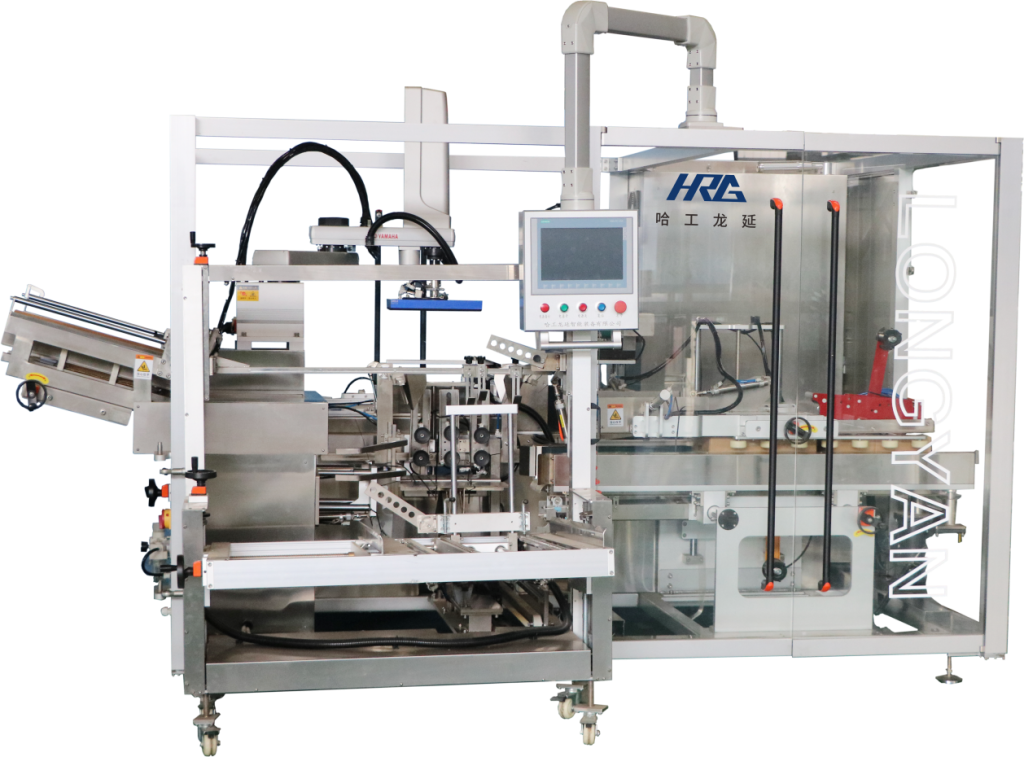

All in One Case Erector Loader Sealer KZF 550R3 loading by Yamaha robot
