Industrial Heavy-Duty Automatic Cartoner ZHJ-400

High-speed automatic continuous Cartoner ZHJ400 is a new model independently developed by our parent company, a high-tech product integrating technologies of photo electronics, pneumatics and mechanics. It is also applicable to automatic loading and cartoning of a wide range of blisters,  bottles, ointments and sachets. Inline material conveying and inspection, carton pick-up forming and conveying, material feeding, batch mark embossing, top and bottom tuck in locking (or hot melt gluing), empty carton rejection and final product discharging are all processed automatically. The machine can be integrated with blister machine, sachet packing machine, liquid filling machine, cellophane overwrapping machine (stretch bander), case packer and other machines for mass production.

Share:

Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration

Product Type

  • Introduction

  • FAQ

  • Video

1.Frames welded by square steel promise the accuracy of assembly.

2.Key parts are processed by CNC, ensuring the precision of processing.

3.Part of configuration adopts world-class brand products.

4.Siemens touch screen HMI has functions of running parameters and fault displays. It is intuitive to operate.

5.According to the people-oriented principle, security door secures the safety of operators.

6.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

7. Neither leaflet nor carton is delivered for missed products. Machinery will stop automatically for three consecutive times and it will stop and alarm without cartons.

8. When the products are under a specific range, it only needs simple adjustment without changing formats.

Parameters

ModelZHJ-400
Output200~380 cartons/min
Carton size(70-260)×(35-100)×(16-80)mm
Main motor power2.2KW
Dimensions 4850x1720x1750mm
Weight 3500kg
Power supply380V/50Hz
Compressed air0.6~0.8MPa
Total power4KW
Air consumption260L/min
Noise≤75dB

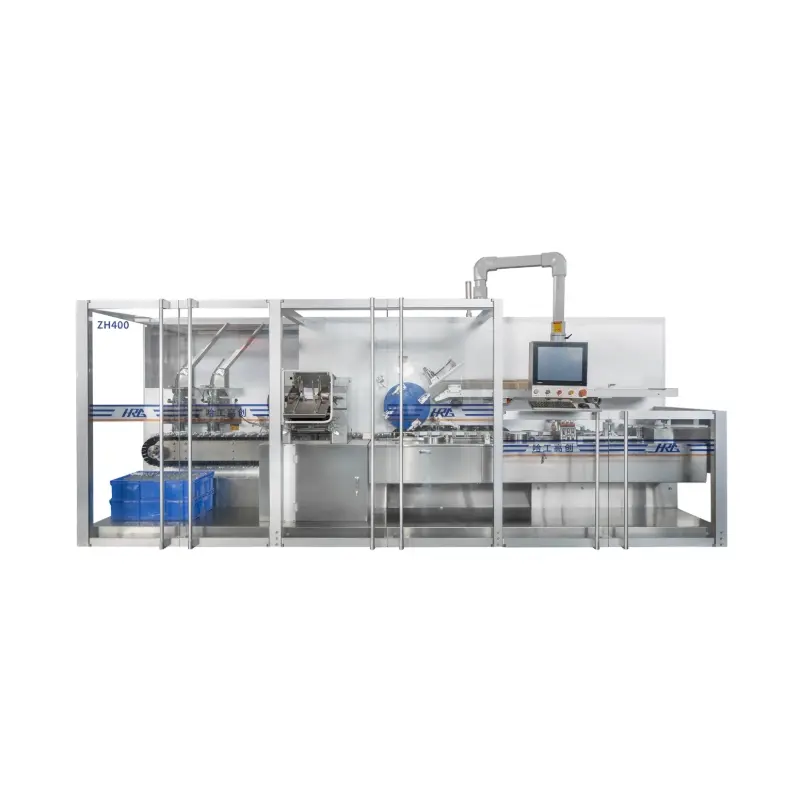

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 1

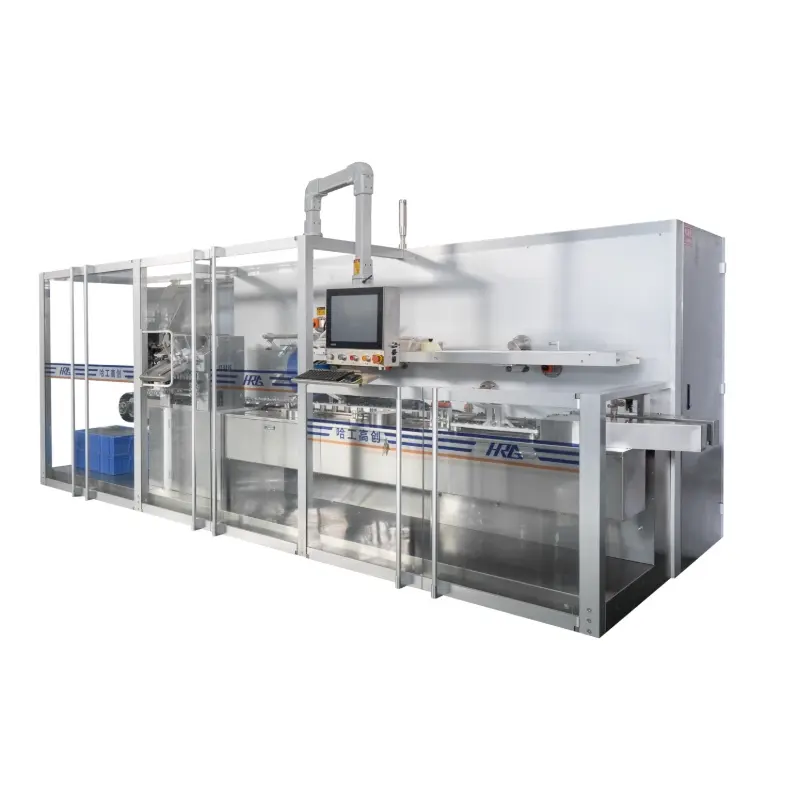

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 2

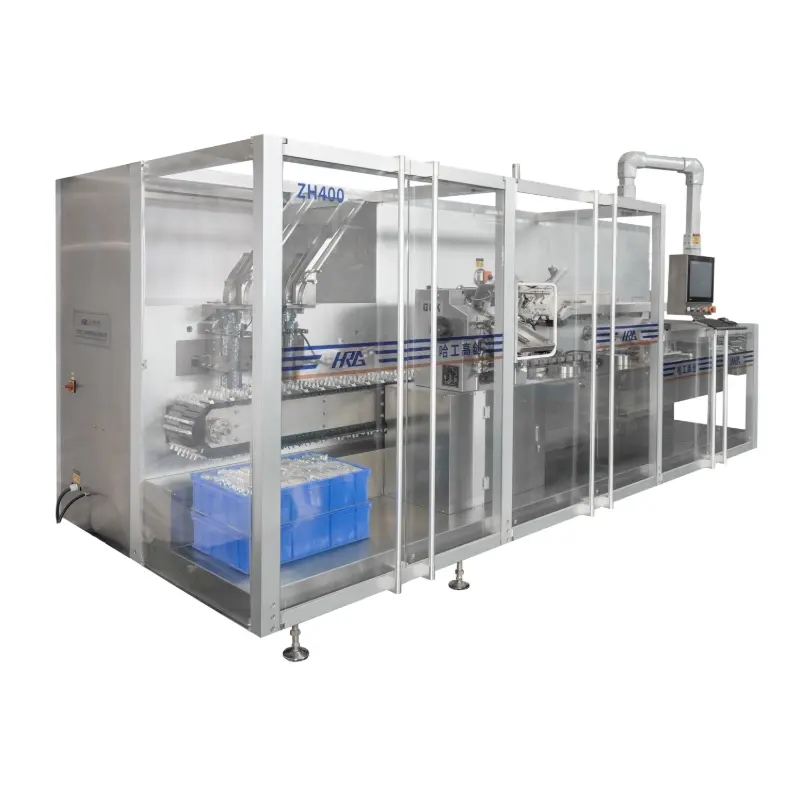

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 3

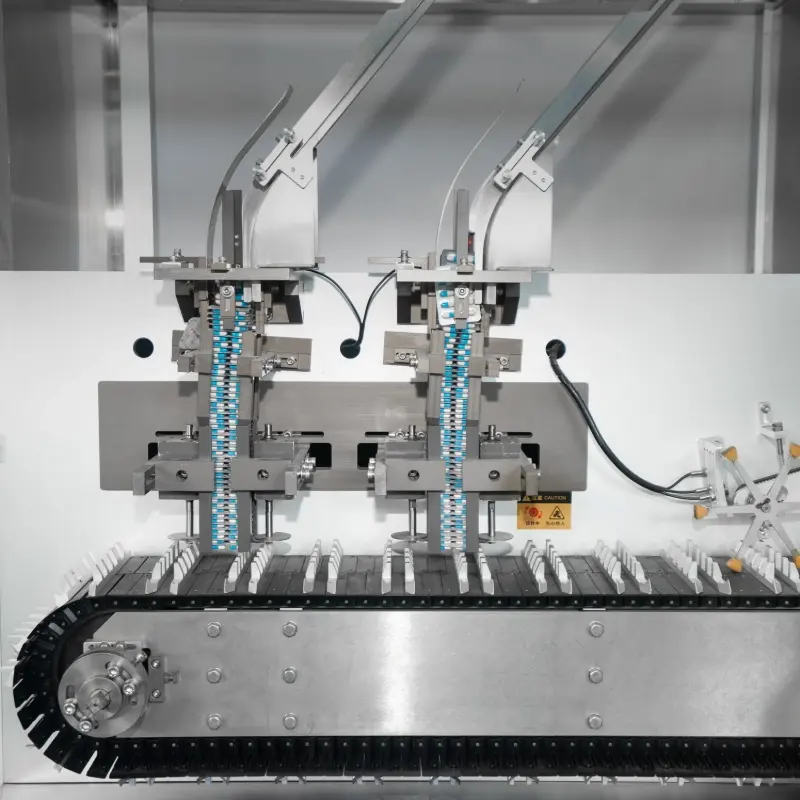

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 4

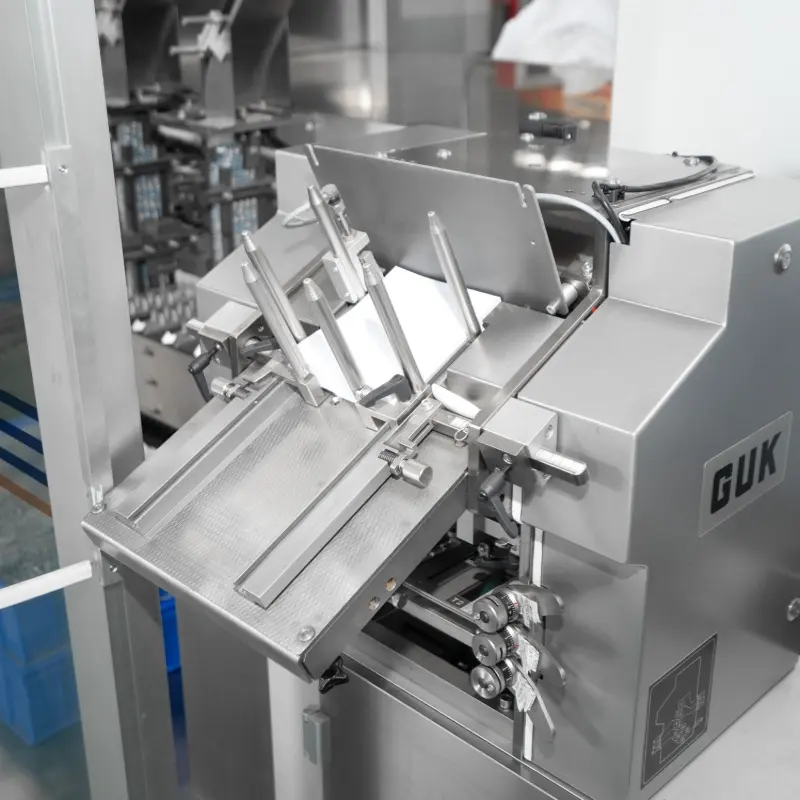

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 5

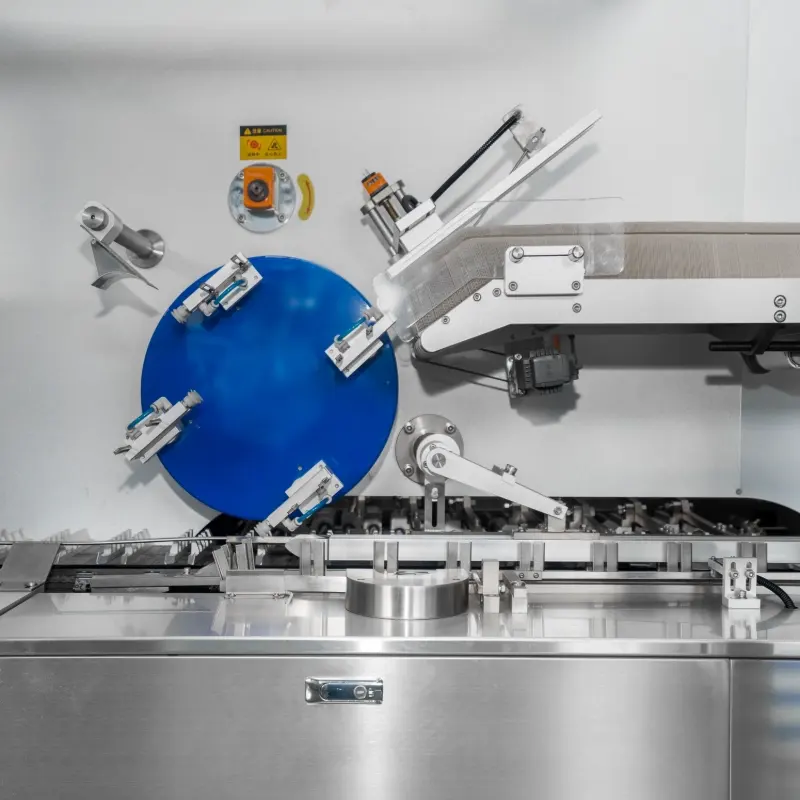

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 6

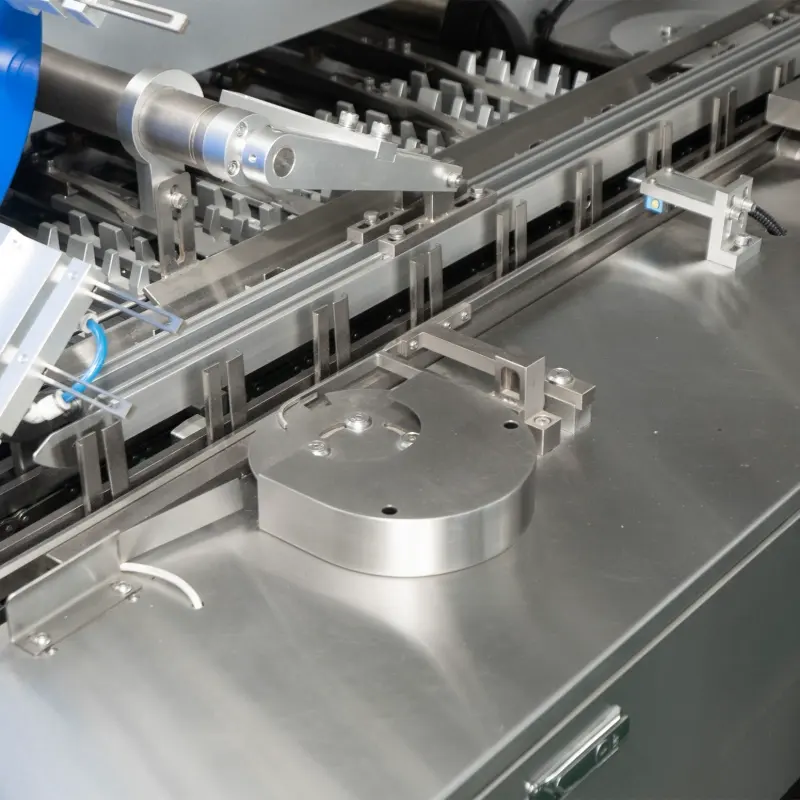

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 7

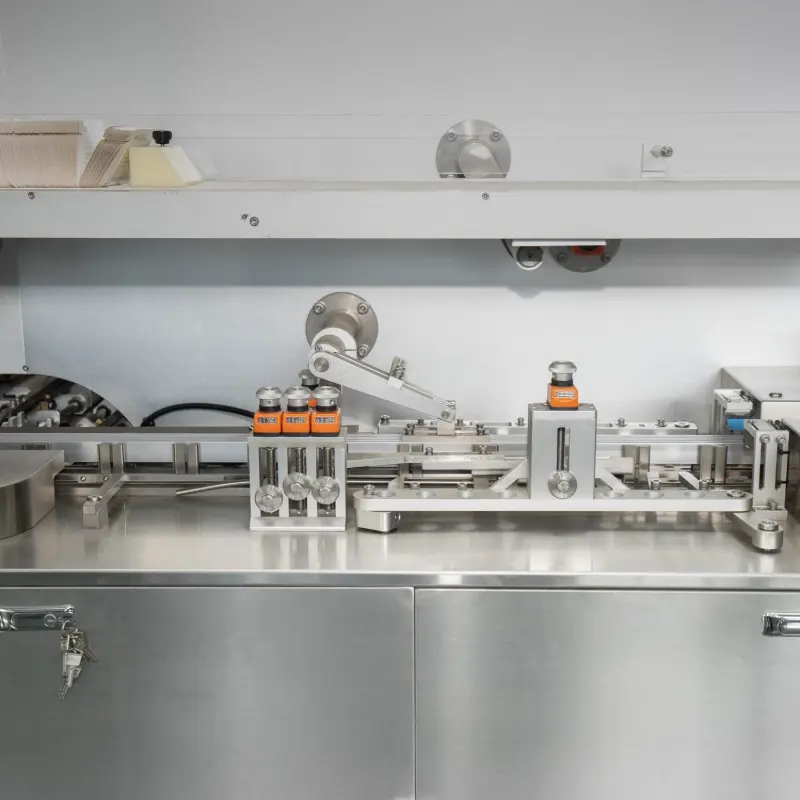

Heavy Duty ZHJ 400 Automatic Cartoning Machine for Industrial Packaging 8
  • Q

    What routine maintenance needs to be done?

    Regularly lubricate moving parts (such as cams and chains). Clean photoelectric sensors and vacuum cups. Check the wear of wearing parts (such as push rods and folding plates).
  • Q

    Does the equipment support automated data collection?

    Most modern equipment can be integrated with the MES system to record data such as production and failure time in real time.
  • Q

    Can the cartoning machine be compatible with boxes of different sizes?

    Some models support quick production change (by changing molds or adjusting servo parameters), but box types with large differences may require customized equipment.
  • Q

    Which parts are prone to damage? How long is the replacement cycle?

    Suction cup (3~6 months, depending on frequency of use). Folding plate, push rod (6~12 months). Belt/chain (1~2 years).
