Chemical Raw Material Heavy Bag Packaging Machine Line

High Speed Semi Automatic Packaging Machine

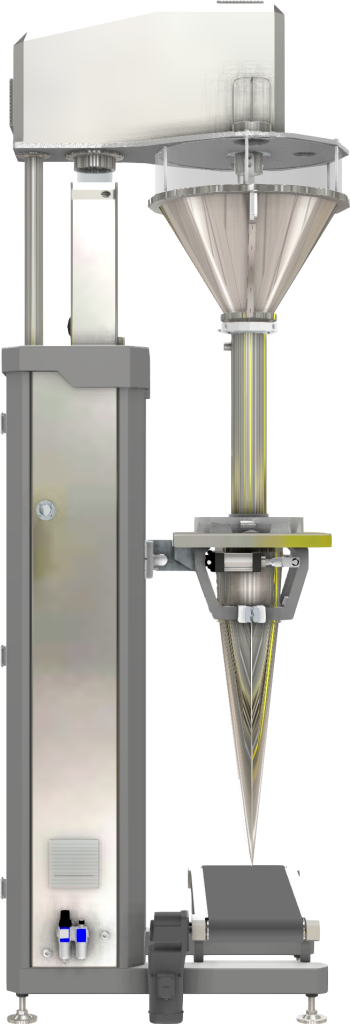

The semi-automatic lifting screw is composed of a 100L vertical screw, a lifting mechanism, bottom conveying, etc. The whole machine is made of stainless steel and aluminum alloy materials. It adopts a column-type design, featuring high visibility, simple operation, and convenient maintenance. The discharging screw is driven by a servo system, and the high - precision screw ensures stable discharging. For the packaging design of ultra-fine powders that are prone to dust and high-precision requirements, the equipment is equipped with dust removal at the bag mouth and internal dust removal. This machine uses PLC + human-machine interface and has two modes: manual and automatic. Debugging parameters can be set for various formulas, and during production, product specification switching can be achieved through the formula-calling method.

Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration

Product Type

Introduction
FAQ
Video

The pneumatic bag-clamping device and the bracket are installed on the weight sensor. The rapid and slow filling is carried out according to the pre-set weight. The high-response weighing system ensures high packaging accuracy. The motor drives the bag-clamping device to lift, and the lifting speed can be set arbitrarily. No dust is raised to pollute the environment during filling. The filling head is equipped with a handwheel for height adjustment, making it easy to achieve packaging of various specifications. Two working modes can be switched. The combined or open-type feed box is very convenient to clean.

Parameters

Bag size (W*L)	W(500-600)*L(800-1040)mm
Output	＞120 bags/hour
Product	powder
Weight	25-50KG
Air Pressure	0.5-0.7Mpa
Bag Type	Paper bags and woven bags (with film-coated on one side)
Bag closure	straight-opening bag

Semi Automatic Packaging Machine Servo Driven Dust Free Filling for Fine Powders High Precision Needs
