Flexible & Efficient All-in-One Case Packer KZF-550R1 (loading by Kuka robot)

All-in-one Case Erector Loader Sealer KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erector driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.   The machine stacks and collates the cardboard blanks (KNF) according to the required numbers of products to be packed. The Kuka robot arm will pick and place the product into the case after stacking and case will be sealed after loading. The machine can be equipped with conveyor roller as per customer’s requirement to be integrated with labeling machine and strapping machine.   KZF-550R1 is widely used in pharmaceutical, food, chemical and other light industries.

Share:

Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration

Product Type

  • Introduction

  • FAQ

  • Video

Features

1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing.

2.The stacking system can be adjusted according to the size of the case and stacking pattern.

3. Not less than 10 placements per minute for quick case loading.

4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading.

5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning.

6.Warnings are in place for machine fault, missed product, missed case or machine jam.

ModelKZF-550R1
Case size(L×W×H)(300-500)x(200-400)x(200-350)mm
Loading speedRobot arm≥10 placements/minute
Power supply380V 50Hz
Power consumption16Kw
Compressed air pressure0.6Mpa
Dimensions(L×W×H)4100X2400X2400mm (For reference only)
Weight2000Kg
Based on standard configurations while machine can be customized.

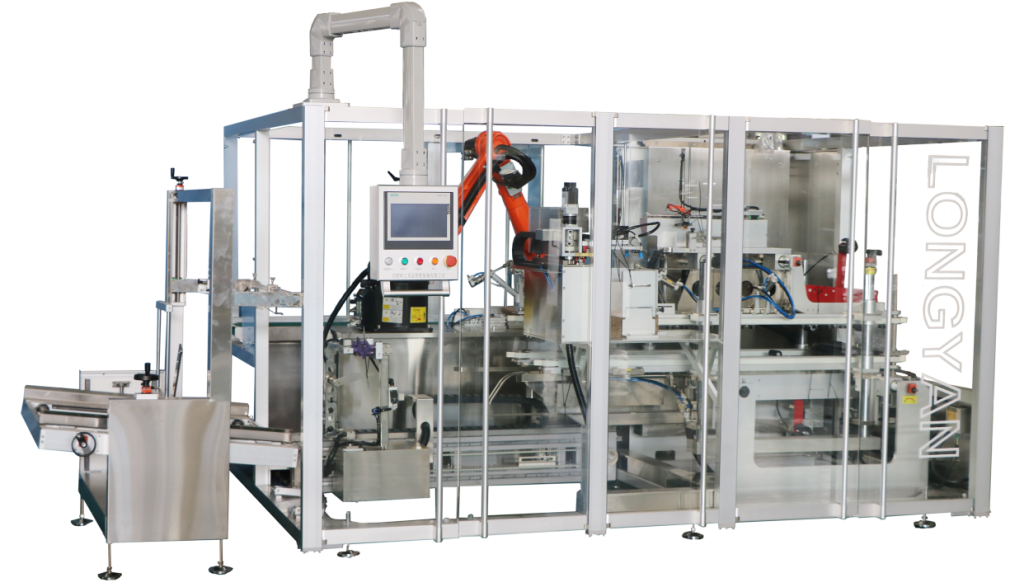

All in One Case Erector Loader Sealer KZF 550R1 loading by Kuka robot
