HomeProductsBundlers&WrappersDurable PE Film Stretch Bander for Secure Product BundlingK600A

Bundlers&Wrappers

Durable PE Film Stretch Bander for Secure Product BundlingK600A

Easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation and easy format changeover. The machine is mainly used in wrapping and bundling of carton-packed products in food and pharmaceutical industries

Share:

Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration

Product Type

  • Introduction

  • FAQ

  • Video

1. State-of-the-art design of structure and electronic control system. Main servo drive insulated from operation area. GMP compliant.
2. Advanced heat-sealing mechanism, perfect non-overlap PE film hot melt sealing, and double film reeling structure save packing materials and reduce cost.
3. Multi-lane pre-stacking mechanism substantially increases the speed of carton grouping and collating whereby the feeding speed can reach 200-400 cartons/minutes in the proceeding stage. Bundling speed is not less than 40 bundles/minute.
4. Bundling strength is adjustable. Changing products and adjusting machine is easy. Format changeover and machine adjustment take less than 10 minutes.

Parameters

Product size (L×W×H)Max:280x180x120mmMin:60x40x40mm
Bundling speed38-45 bundles/minute
Bundling materialPE Thickness:0.06-0.08mm
Power supply220V/50Hz
Power consumption6Kw
Compressed air pressure≧0.6Mpa
Dimensions (L×W×H)3000x1080x1800mm
Weight880Kg

K600B

Product size (L×W×H)Max:280x180x120mmMin:60x40x40mm
Bundling speed30-40 bundles/minute
Bundling materialPE Thickness:0.06-0.08mm
Power supply220V/50Hz
Power consumption4Kw
Compressed air pressure≧0.6Mpa
Dimensions (L×W×H)2800x1080x1850mm
Weight750Kg

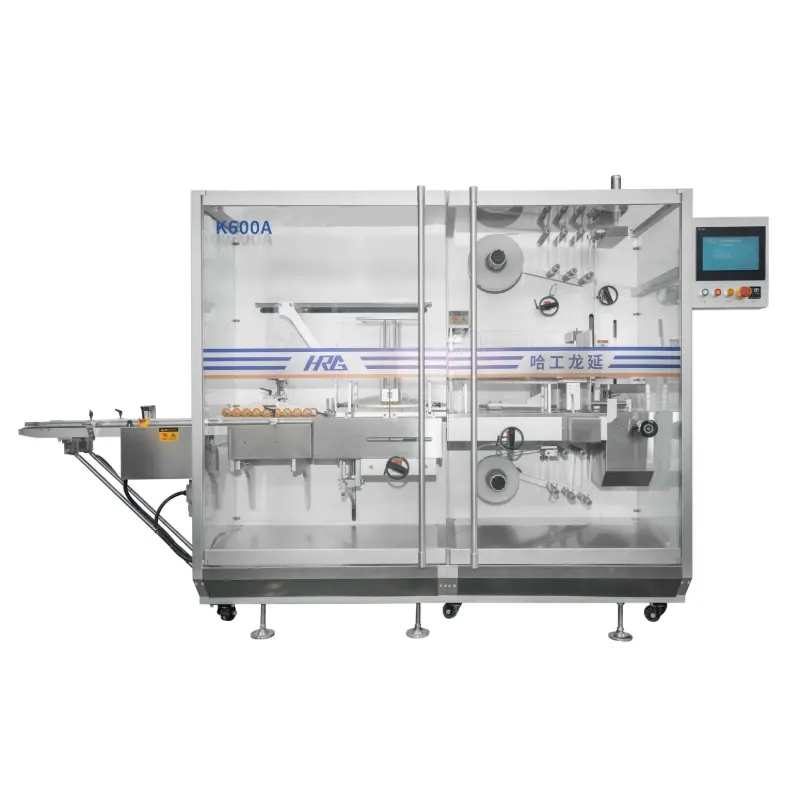

Durable K600A PE Film Stretch Bander for Secure Product Bundling 1

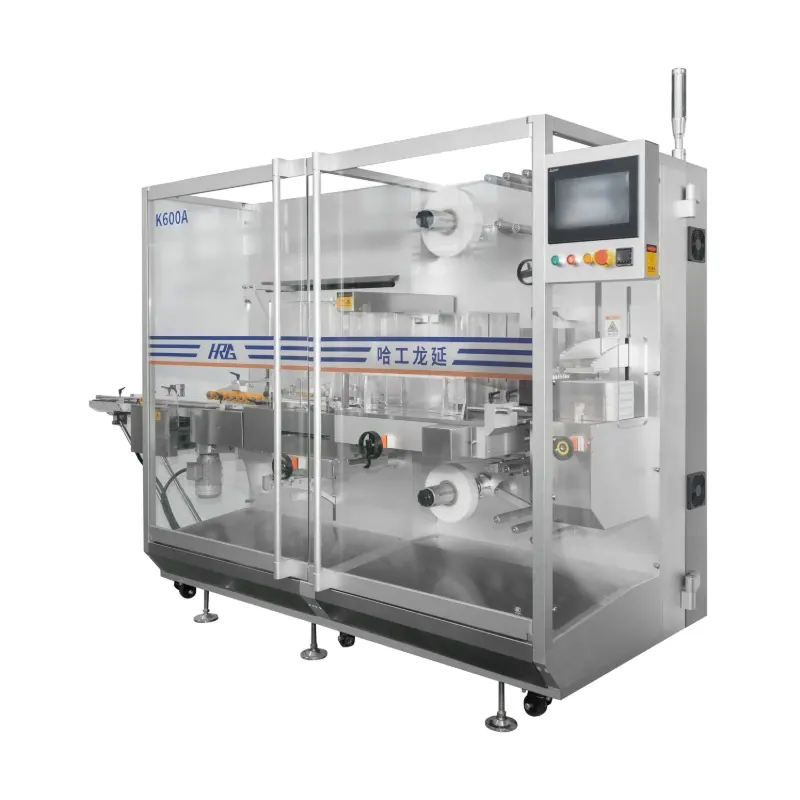

Durable K600A PE Film Stretch Bander for Secure Product Bundling 2

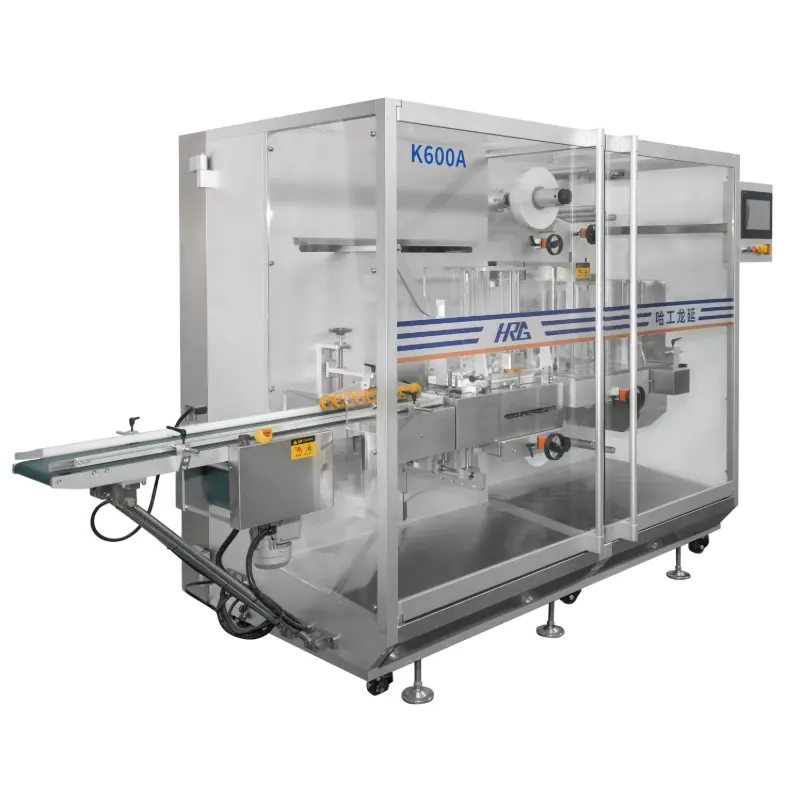

Durable K600A PE Film Stretch Bander for Secure Product Bundling 3

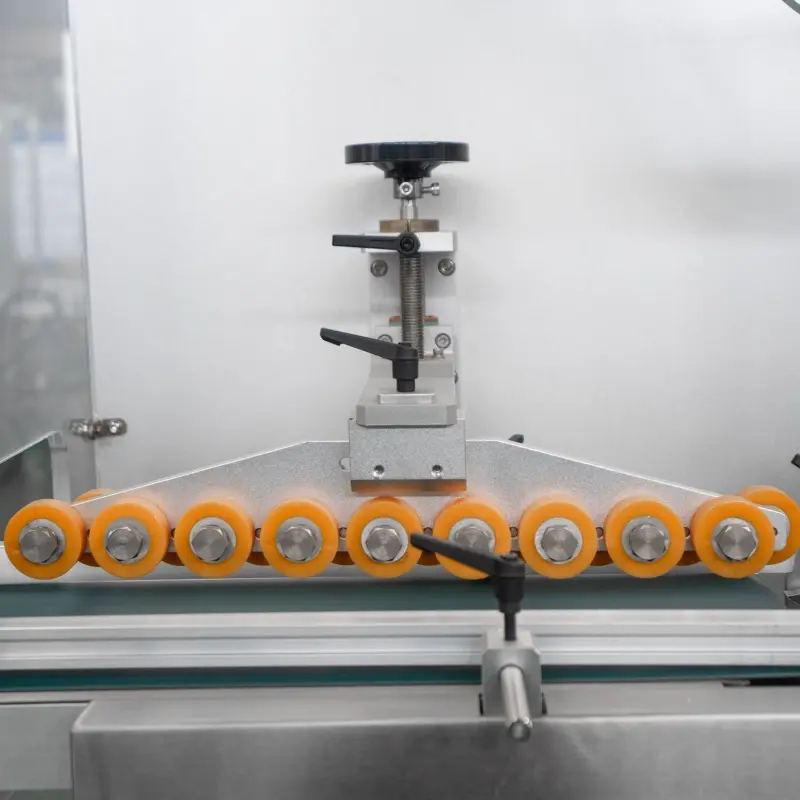

Durable K600A PE Film Stretch Bander for Secure Product Bundling 4

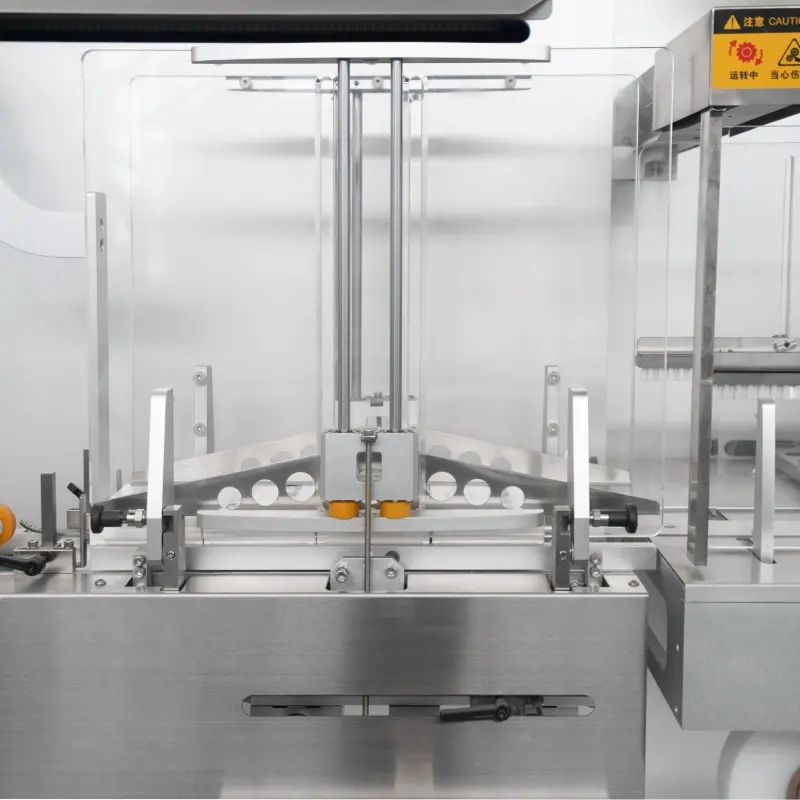

Durable K600A PE Film Stretch Bander for Secure Product Bundling 5

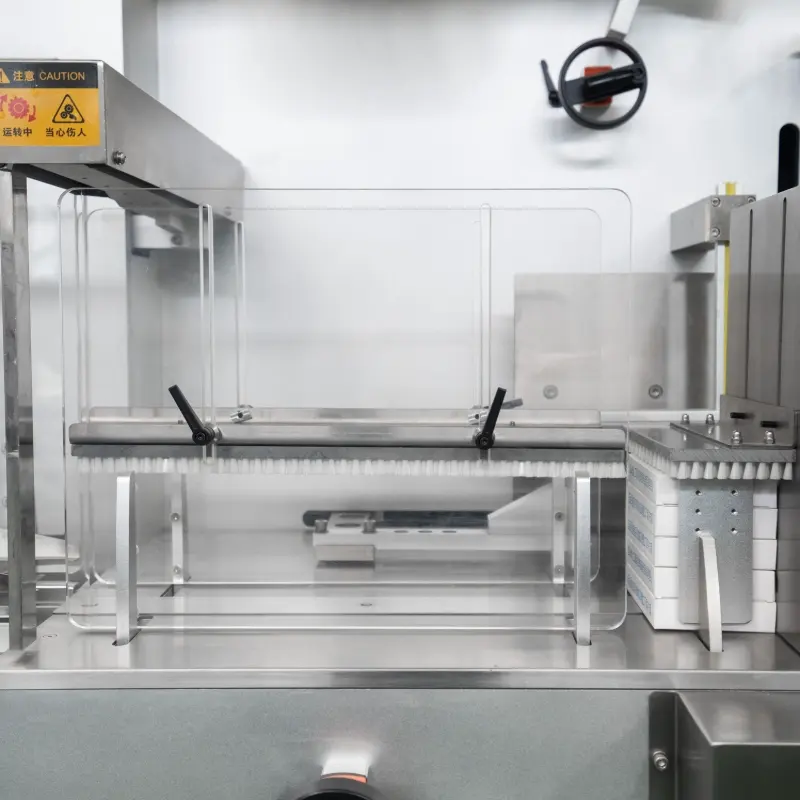

Durable K600A PE Film Stretch Bander for Secure Product Bundling 6
