Chemical Raw Material Heavy Bag Packaging Machine Line

Automatic Unpacking &amp Feeding Station

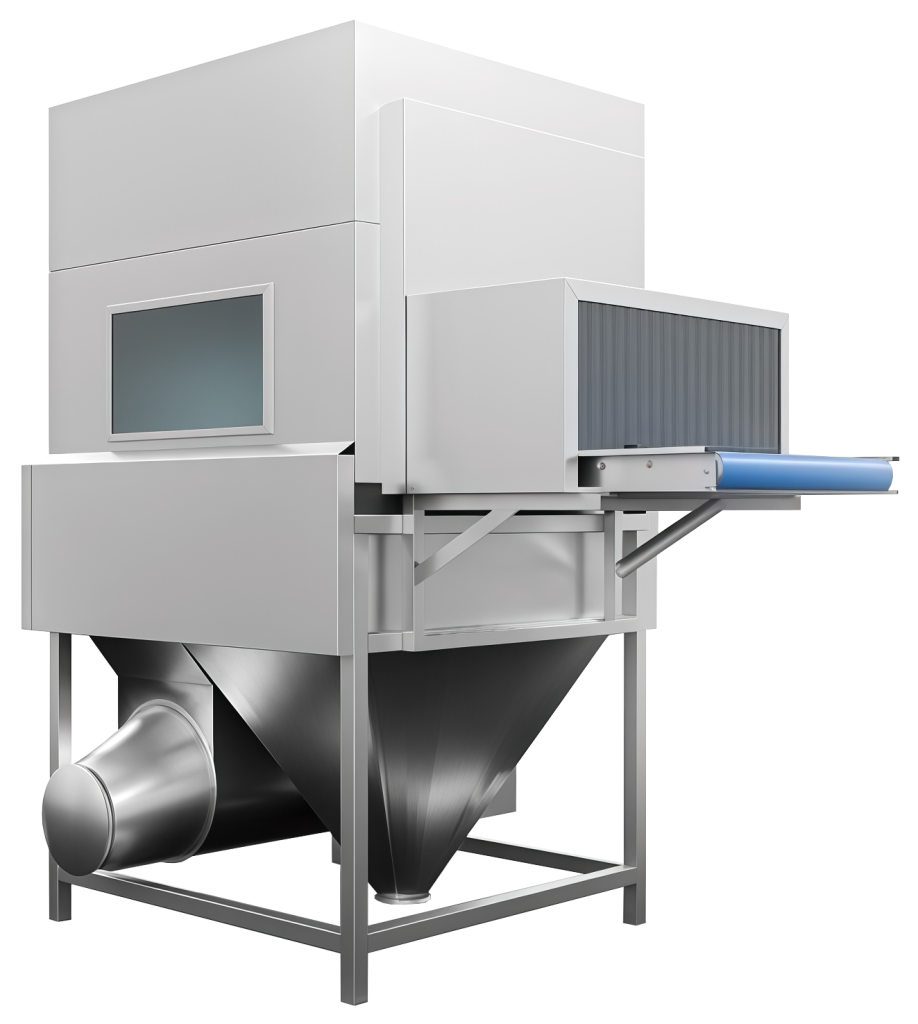

Product Introduction The automatic unpacking and feeding station is used in many industries such as pharmaceuticals, fine chemicals, and daily chemicals. The bag is automatically fed, the cutting knife device breaks the bag, and the material emptying device empties the material in the bag. The material falls into the lower hopper by gravity, and the empty bag enters the waste bag collector and is automatically collected. It effectively prevents dust spillage and the generation of bagging debris.
Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration
  • Introduction

  • FAQ

  • Video

Core Advantages

1. Equipped with a special bag-breaking device, the bag is cut open with one knife, and no debris is generated.

2. With built-in dust removal device, the entire unpacking box is in a state of slight negative pressure, and no dust escapes.

3. The waste bag automatic collection device squeezes the waste bags through a spiral, and continuously outputs and bags them. The continuous bag automatic sealing and cutting function can be optionally equipped.

4. Built-in bag blowing and emptying device, the residual rate of materials in the empty bag is extremely low.

5. Intelligent control, bag opening mechanism status display, fault alarm.

Usage scenario

The unpacking space is closed and equipped with a negative-pressure dust removal fan, so there is no dust spillage on site;

Equipped with an automatic waste bag collection device.

Parameters

ModelLC-CB25
Capacity100-200 packs/hour
Unpacking specification25 kg/bag
Air consumptionabout 150L/min/0.6Mpa
Power supply5.5KW
Dimensions (L × W × H)1200×1600×2200mm
Machine weight1000kg
