  • Automatic Sealer and Shrink Wrap Machine S701+S4525L

All-in-one Case Packers

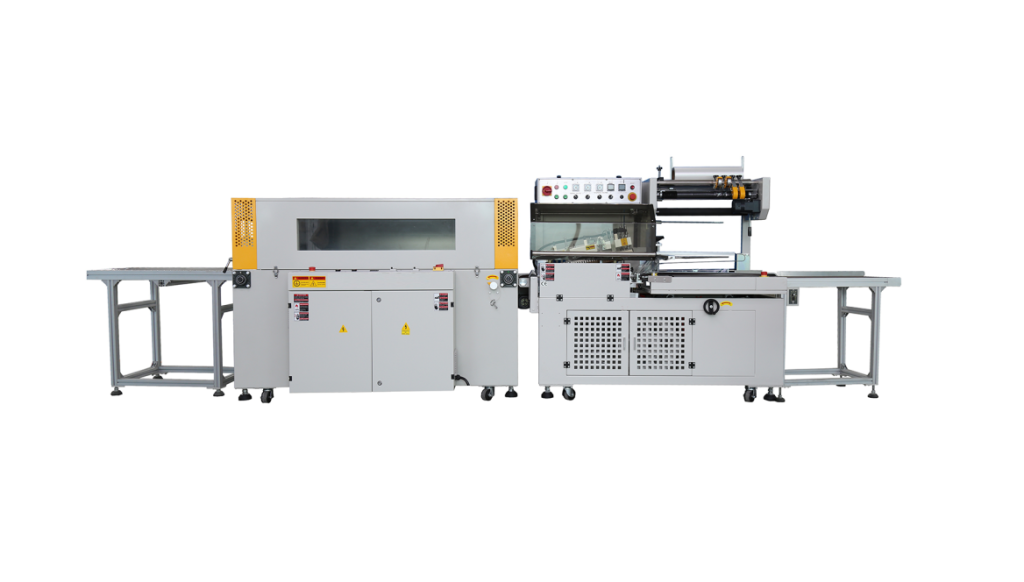

Automatic Sealer and Shrink Wrap Machine S701+S4525L

Automatic Sealer and Shrink Wrap Machine S701+S4525L consists of an L-bar sealer and a heat shrink tunnel, extensively used in the mass production of packaging. A fully-automatic process of film feeding, punching, wrapping, sealing, cutting and shrinking, except manual adjustment of film guiding system and feeding platform for products of different widths and heights.
Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration
  • Introduction

  • FAQ

  • Video

Features

1. With convenient switch between horizontal and vertical photoelectric detection, it is easy to wrap and seal small and thin products.

2. With automatic feeding system, the length is automatically adjusted by the co-work of electric eye and timer. Scraps will be automatically collected by the reel equipped with induction motor.

3. Easy adjustment for different sizes of product. No need to change format or bag maker.

4. Diversified combinations of different sizes of products can be packed, such as a product plus a give-away.

5. Continuous automation of sealing and shrink wrapping features stable performance, labor saving, reliable quality, high shrinking efficiency, and broad applications.

6. With money-valued, economical, and durable qualities, the machine is suitable for sealing and shrink wrapping of POF, PVC and other films.

Parameters

Automatic L-bar Sealer and Shrink Wrap Machine S701+S4525L
ModelS701S4525L
Dimension (L×W×H)1790×850×1525mm1600×670×1520mm
Packing size (L×W×H)(100-450)×(60-350)×(5-120)mm700×400×200mm
Sealing arm size/Tunnel size (L×W×H)L+H≦450/W+H≦350mm1200×450×200mm
Packing speed1-28packs/min20-50packs/min
Net weight250Kg200Kg
Power2Kw13Kw
Power supply220/380V, 3φ, 50-60Hz220/380V, 3φ, 50-60Hz
Air pressure5.5Kg/cm25.5Kg/cm2
Automatic Sealer and Shrink Wrap Machine S701S4525L
