- Floor-standingdesign applicable to flat labeling, side labeling and corner labeling of medicine cartons, cases and othercuboid products.
- Suitable for inline labeling of food or medicines with electronic regulatory codes.
- Extra powerful servo drive for transporting labels (max.110mm)with PLC and touch screen. GMP compliant.
Other

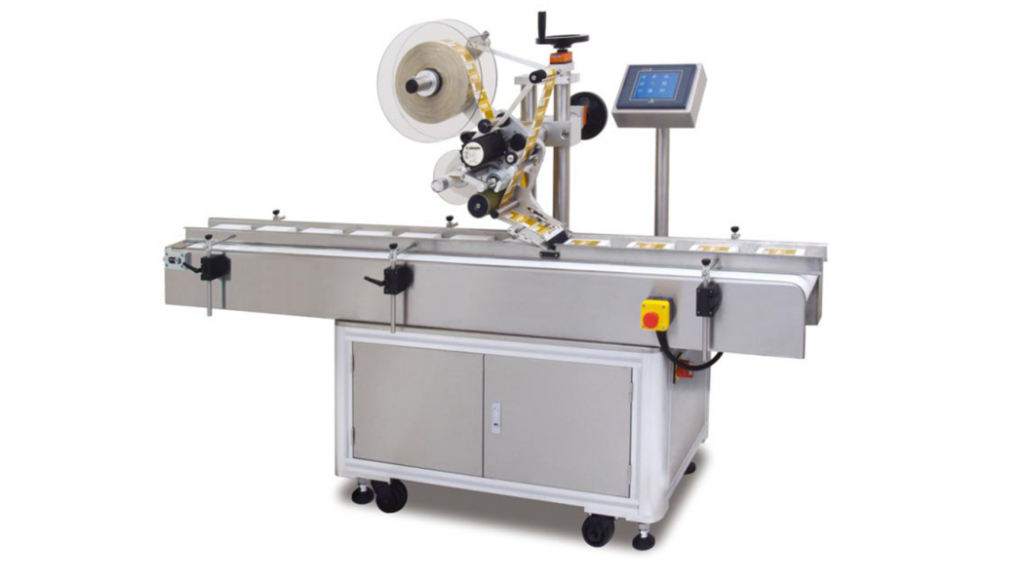

Automatic Labeling Machine TBJ-200A
- Quick Changeover
- Ubiquitous Precautions
- Intuitive Operation
- Tight Integration
Product Type
Introduction
FAQ
Video
Parameters
| Model | TBJ-200A |
| Labeling speed | 30-200Pcs/min (subject to material) |
| Labeling accuracy | ±1mm (material variations not included) |
| Label width | 10-110mm |
| Label length | 10-100mm |
| Product dimensions (LxH) | (10-250)x(10-200)mm |
| Conveyor belt height | 800±200mm |
| Compressed air pressure | 0.5-0.7Mpa (labeling cylinders) |
| Air consumption | 10L/min (clean air) |
| Power supply | 220V, 50/60Hz |
| Power consumption | 1Kw |
| Overall dimensions (L×W×H) | 900x500x1650mm |
| Weight | 150Kg |
