Chemical Raw Material Heavy Bag Packaging Machine Line

Automatic High Speed Powder Bagging Machine

Fully automatic bag-loading means putting the packaging bag onto the discharging port of the packaging scale, replacing the original manual bag-loading. It completely replaces manual bag-loading and can work repeatedly for a long time, saving labor costs and reducing management expenses. This unit is composed of a bag storage, a bag-taking and bag-arranging device, a bag-loading manipulator, a bag-clamping and discharging device, a bag-holding and pushing device, a bag-mouth guiding device, a vacuum system, and a control system, etc. The unit configuration is: weighing scale + fully automatic high-speed bag-loading machine + heat-sealer + finished-product conveyor. Requirements for packaging bags: The distance between the materials and the top of the bag mouth should be no less than 220mm. The bag mouths of the inner PE bags must be flush at the top and sealed together.
Quick Changeover
Ubiquitous Precautions
Intuitive Operation
Tight Integration
  • Introduction

  • FAQ

  • Video

High-efficiency automation: Automatically complete processes such as bag-loading, filling, and sealing, greatly improving packaging efficiency and reducing labor costs. Precise measurement: Adopt an advanced measurement system to ensure high packaging weight accuracy, with the error controlled within a very small range. Versatility: It can adapt to a variety of materials, such as the packaging of powders and granules like fertilizers, ores, and feeds. Stability and reliability: Carefully select high-quality components. After strict testing, the equipment runs stably with a low failure rate, ensuring the continuity of production.

Parameters

Output>1000 bag/h
ProductPowdered materials with a mesh size of 200 -300
Weight20-50KG
Accuracy±0.2%
Bag SizeW(550-600)*L(800-1040)mm
Scope of applicationstraight-opening bag; M bag
Bag materialWoven bag (outer coated film), woven bag (inside PE film), PE bag
Sealing(folded-edge) thread sewing; heat sealing
Bag storage200 bags
Air pressure0.5-0.7Mpa
Power14.5KW
Air consumption90 m3/h

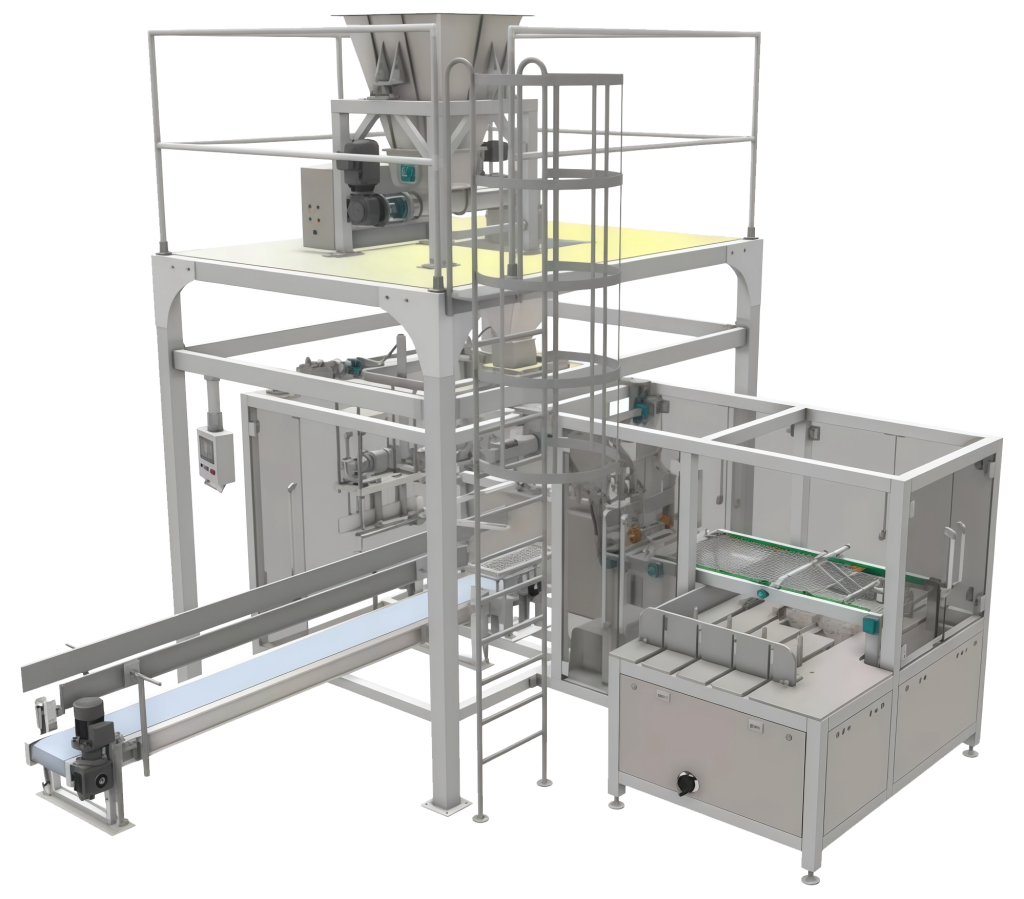

Powder bagging machine
